Zeiss MaxLine Production Measuring Machines

Production measuring machines enable you to maximise the performance and profitability of your quality inspection activities. Thanks to the scanning probe, MaxLine machines allow you to also check the form and location of features in addition to the accuracy of object dimensions. All the MaxLine machines can be placed where the production occurs.

< Back to Zeiss

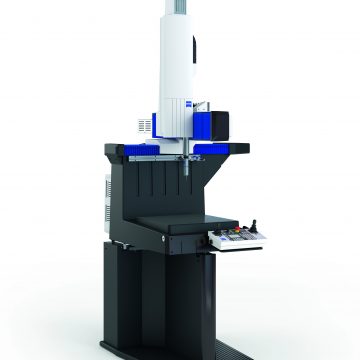

Duramax

Carl Zeiss Duramax Production CMM


  • Inprocess measuring technology
  • Measuring range 500 x 500 x 500
  • Max. workpiece weight 100kg
  • Eliminates the need for fixed gauges as it is equipped with the Zeiss VAST XXT scanning sensor
  • Can be used to capture contours and freeform surfaces.
  • Temperature stability from +18ºC to +30ºC
  • No compressed air required
  • Space-saving design
  • Integrated passive damping system
  • Four-sided loading
  • Completely covered guideways
  • Scanning and single-point measuring
  • CNC-guided stylus change
  • 25 mm adapter plate for optimal reproducibility
  • Axial stylus length: 30 to 150 mm
  • Radial stylus length: 30 to 65 mm
  • Carl Zeiss CALYPSO measuring software
  • Shop floor base (option)

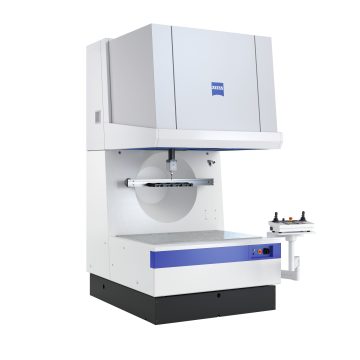

Gagemax_XXL_4c (1)

Carl Zeiss Gagemax Production CMM


  • Measures directly in production with enormous speed and precision.
  • Unaffected by extreme temperature fluctuations and ground vibrations.
  • Measuring range 750 x 500 x 500
  • Max. workpiece weight 250kg
  • Equipped with VAST XXT scanning sensor
  • Can measure unknown curves and freeforms via active scanning.
  • Three-sided loading and operation
  • Temperature stability from +15ºC to +40ºC
  • Compact dimensions, large measuring space
  • Ram made of temperature-stable carbon-fiber
  • Includes stylus rack with 4 slots
  • Automatic generation of the ideal measuring strategy
  • Tangential approach
  • Helix scanning
  • Dynamic stylus calibration
